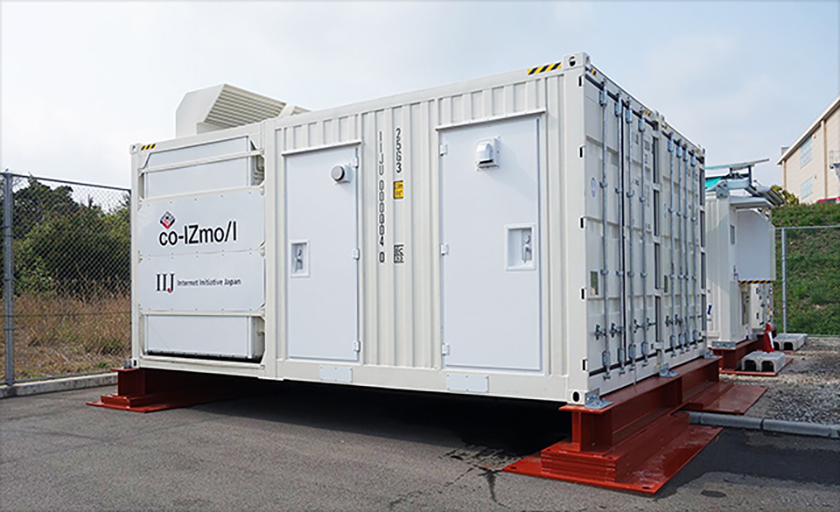

co-IZmo/I is a containerized module with the following features, providing flexibility that makes it suitable for small- up to large-scale installations.
1. All necessary functionality built in (air conditioning, racks, cabling, security, fire equipment, etc.)
- Reduces design time and cost
- Reduces on-site construction time and cost

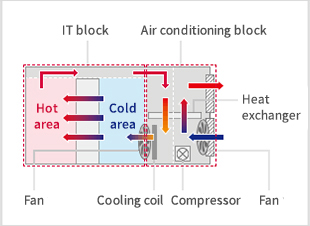

2. Indirect outside-air cooling system
- Achieves high energy-saving performance
- Installation not dependent on external environment (can be installed in locations with poor air quality, high temperature/humidity)
3. Modular structure
- Meets customer's IT-related needs of a scale that exceeds the capacity of one container (the system can be incrementally expanded according to need)
- Abundance of options (UPS modules, emergency generators, vestibules, etc.)
| co-IZmo/I | |
|---|---|
|
Features
|

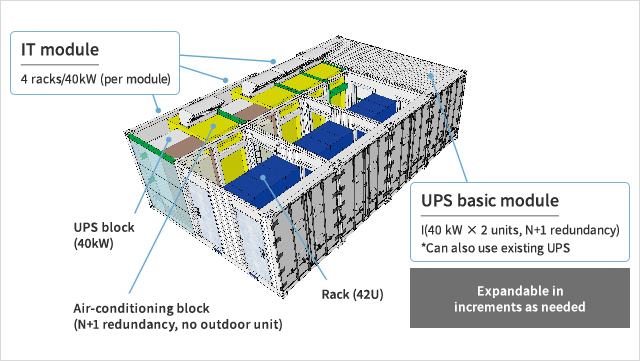

The figure below shows a 12-rack configuration in which three IT modules are joined together. The UPSs and air conditioning systems have redundancy built in to provide the facilities necessary for a data center in an integrated unit. Effectively, up to 10 kW of power is available per rack.

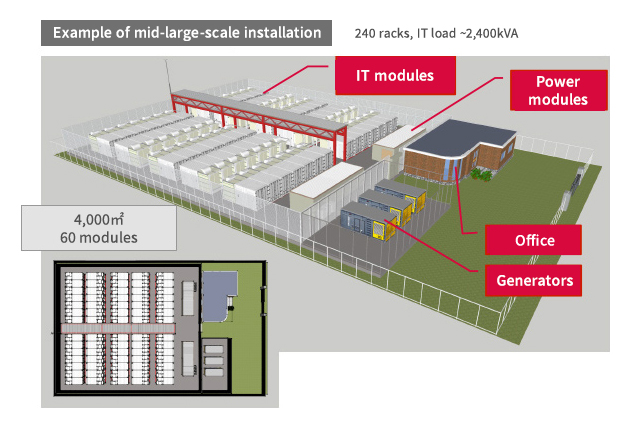

The modules can also be used to build data centers with hundreds of racks, as illustrated in the figure below.
For more information on co-IZmo/I or to request a quote, please see the product page.
